Description

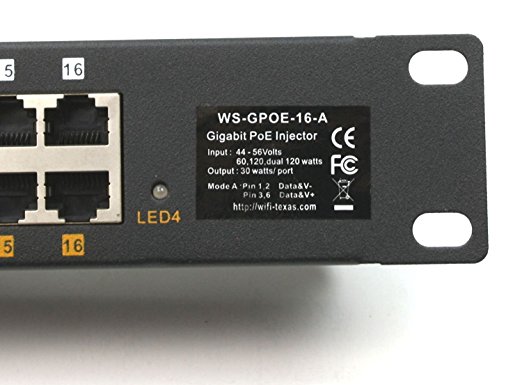

Passive 16 port Gigabit Ethernet PoE injector including two 48 volt and 120 watt power supplies
The GPOE-16A Injector has 16 passive PoE ports. This means that it transmits power directly via the LAN cable without first checking whether the connected terminal device (PD) is PoE capable.
A current of up to 0.65 amps is supported per PoE port. With the supplied 48 volt and 120 watt power supply units, an output power of 31.2 watts per port and a total output of 240 watts is available. The PoE Injector thus supports the IEEE802.3af (PoE) and IEEE802.3at (PoE+) standards.
Data is transmitted at a speed of up to 1000 Mbit/s, which corresponds to the Gigabit Ethernet standard.
Power and data are transmitted via pinout mode A.
