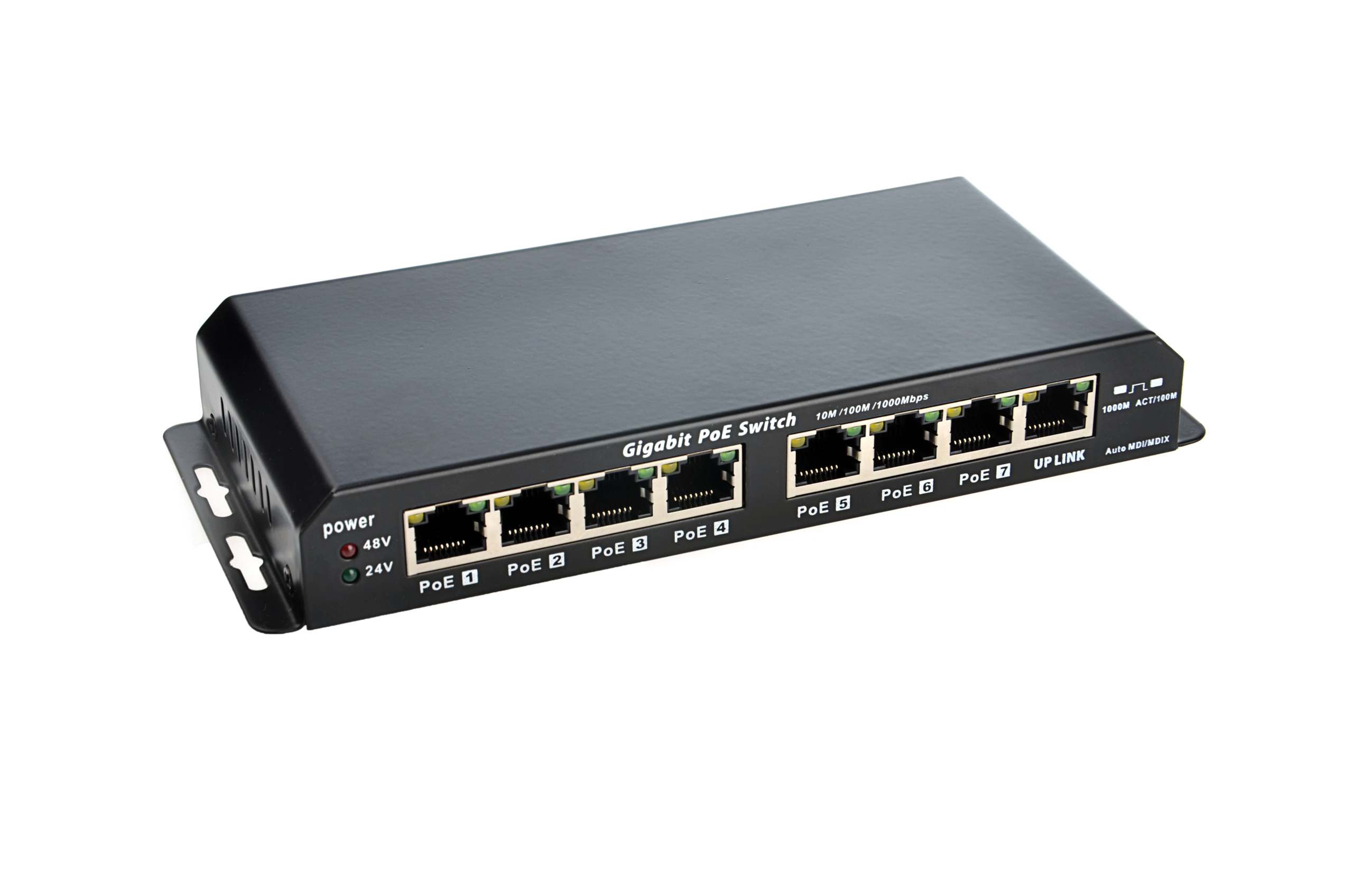

Passive 7 port Gigabit Ethernet PoE Switch including 48 volt and 60 watt power supply
The GPOES-8-7-AB switch has 7 passive PoE ports. This means that it transmits power directly from the PoE port via the LAN cable without first checking whether the connected terminal device (PD) is PoE capable. It also has an uplink port via which it and thus also the connected end devices are supplied with data.
A current of up to 0.65 amps is supported per PoE port. With the supplied 48 volt and 60 watt power supply unit, an output power of 31.2 watts per port and a total output of 60 watts is available. The PoE Injector thus supports the IEEE802.3af (PoE) and IEEE802.3at (PoE+) standards.
Data is transmitted at a speed of up to 1000 Mbit/s, which corresponds to the Gigabit Ethernet standard.
This PoE Switch offers you the choice of whether power and data should be transmitted via pinout mode A, mode B or only data. The selection is made using simple sliders on the back and can be made individually for each PoE port.
